Description

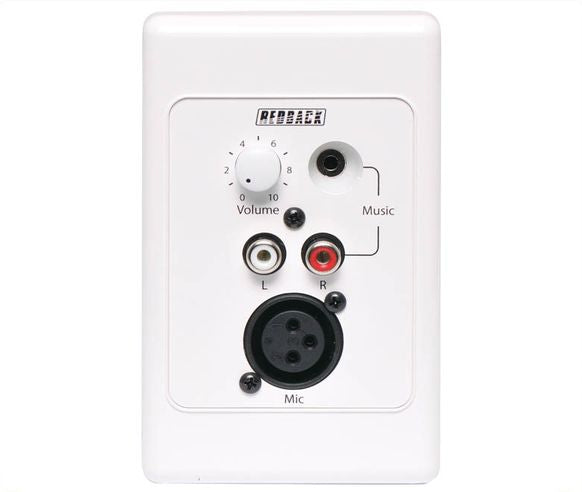

This pre-amplifier wall plate is versatile, accepting both microphone and line inputs and converting them to a balanced high level output. The resulting 3V signal can be transmitted up to 300m without interference via Cat5e cable, making it perfect for large spaces. The mic input is balanced XLR, while the line input offers options for both 2 x RCA sockets and a 3.5mm audio jack, making it compatible with a variety of devices. Power is conveniently supplied through the UTP cabling, making installation a breeze.
Use with Redback A4480B and A4432
This wall plate allows for overriding the input to a designated zone using a local input source within that zone. For example, a mobile phone can be used for background music or a microphone can be used for speeches at a wedding event..
Part of the Redback UTP Solutions Range.
Explore Redback's UTP solutions range, featuring a diverse selection of transmitters and receivers designed to seamlessly connect various audio signals between local zones and equipment racks. Refer to the connection matrix to identify which items in the Redback range are compatible with this product.
- Input Mic Level Sensitivity: 3mV
- Input Line Level Sensitivity: 1V
- Music Input Level Sensitivity: 500mV
- Output Connector: RJ45 8P8C
- Input Connectors: Audio: 3 pin XLR balanced 2 x RCA, 3.5mm JACK
