Redback School Lockdown Controller A4595A Made in Australia

Description

This lockdown controller is designed to supplement the A 4565 alert/evac controller and is specifically suited for schools that need a lockdown warning system. It features a period bell, standby, lockdown, and all clear tones that can be triggered via switches on the front panel, remote closing contact triggers on the rear, or through the use of the optional wall plate (A 4598) or paging console (A 4660)..

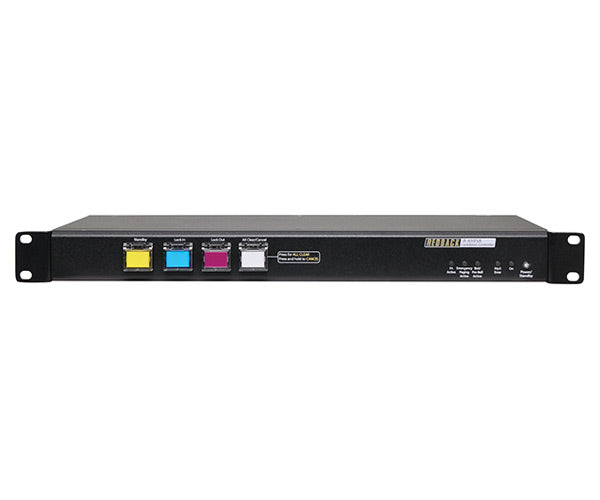

An SD card in MP3 format stores all tones, giving full control to the user. This includes pre-recorded tones, music, or speech for each tone. Additionally, the standby and lockdown tones can be set to repeat/loop using external DIP switches. The order of priority from highest to lowest is all clear, lockdown, standby, bell, and pre-bell. The standby or lockdown tone activates the corresponding switch on the front of the unit, which will continue to illuminate until lockdown overrides the standby condition or the all clear tone is activated. If the period bell is activated, the period bell switch on the front of the unit will illuminate until the tone finishes, while the all clear switch will remain illuminated until the tone finishes if the all clear tone is activated.

When connected, the switches or LEDs on the wall plates or paging consoles will illuminate according to their unit. The system is powered by a built-in 24V DC source and offers separate 24V DC switched outputs for remote triggering of alarms or other devices. All tones - including pre-bell, period bell, standby, lockdown, and all clear - are supported. Connectivity to the paging consoles and wall plates is achieved through Cat5e cabling. Up to four paging consoles or 16 remote wall plates can be connected simultaneously. Additionally, a standard line level output is available for connection to the school's PA system.

This device can be linked to the A 4565 alert/evac controller to integrate with an EWIS system, if necessary.

Features

  • 1U 19” rack mount
  • Interfaces with A 4565 for a complete fire/evac & lockdown system
  • 24V DC operation (plugpack included)
  • Period bell, standby, lock down and all clear controls with remote contacts
  • Connects to lockdown wallplate and/or paging console via Cat5e UTP cabling
  • MP3 SD card tone & audio announcement playback
  • RCA audio output
  • Up to 4 paging consoles and 16 remote wallplates per system
  • Flip up switch covers to prevent accidental triggering
  • Adjustable rear mounted level control
  • Switched 24V outputs for all conditions (all clear, standby, lockdown, bell, pre-bell, emergency & common contacts).

Specifications

  • Output Level: 0dBm into 600Ω
  • Indicators: Power on, Bell/Prebell Active, Mp3 Error, Aux Mp3 Active,PA Active
  • MP3 File Format: up to 320kbps, 44.1kHz, 32bit,VBR or CBR, Stereo (even better as mono).
  • Power Supply: 24V DC @ 2 Amp
  • Dimensions: ≈ 483W x 125D x 44H
  • Weight: ≈ 1.6 kg
  • Colour: Black

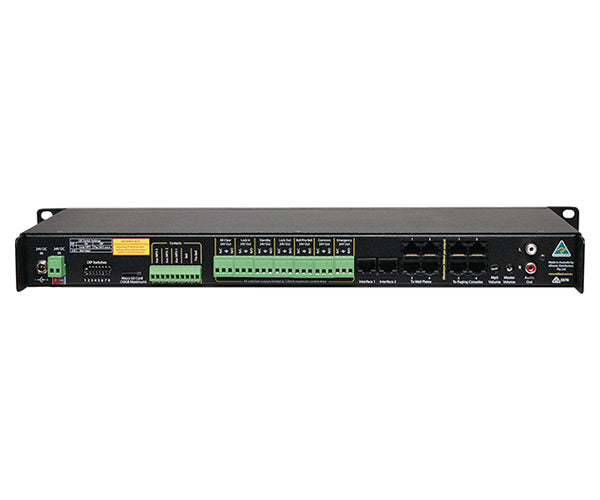

Output Connectors:
  • Audio Output: RCA Stereo Socket
  • Emergency 24V DC Out: Euroblock terminal
  • Common 24V DC Out: Euroblock terminal
  • Prebell/Bell 24V DC Out: Euroblock terminal
  • Standby 24V DC Out: Euroblock terminal
  • Lock In 24V DC Out: Euroblock terminal
  • Lock Out 24V DC Out: Euroblock terminal
  • All Clear 24V DC Out: Euroblock terminal
  • PLEASE NOTE: Maximum output load per output is 120mA
Input Connectors:
  • Paging Console Input: 4 x RJ45 8P8C
  • Wall Plate Input: 4 x RJ45 8P8C
  • 24V DC Power: Euroblock terminal
  • 24V DC Power: 2.1mm JACK (centre +ve)
  • PreBell, Bell, AuxMp3 triggers: Euroblock terminal
Controls:
  • MP3 Volume: Rear Volume
  • Master Volume: Rear Volume
  • Power: On/Off Switch
  • Standby Switch: Illuminated Push Switch
  • Lock In Switch: Illuminated Push Switch
  • Lock Out Switch: Illuminated Push Switch
