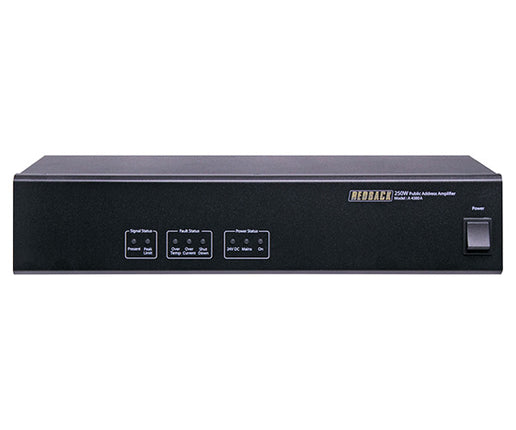

Redback 250W Public Address (PA) Power Amplifier A4380A Made in Australia

Description

These booster amplifiers are suitable for high-powered installations where each zone requires a specific wattage. They are perfect for shopping centers, pedestrian areas, public transportation hubs, and convention centers. All models can run on both 240V AC and 24V DC for battery backup. The input is through a 3-pin balanced XLR (1V), with a rear-mounted level control to prevent tampering or accidental adjustment.

The Redback 250W Public Address (PA) Power Amplifier A4380A, made in Australia, boasts a circuit design with built-in protection features for output over voltage, over current, and over temperature conditions. These features are self-resetting once the fault condition is eliminated. Amplifier status is always displayed through front panel LEDs, providing visual indication. To ensure reliable operation at all times, the amplifier features on-demand fan cooling. Additionally, a dedicated nominal 24V dc 1A output is included on the rear to power additional devices. The unit is also equipped with rack ears for easy installation.

Features

  • Robust design incorporating latest Mosfet technology
  • Very Low noise and distortion
  • 70V, 100V and 4-16Ω outputs
  • 240V AC or 24V DC operation
  • 24V DC @ 1 Amp output for external devices
  • Multi stage thermally cued fan cooling
  • Output Peak Limited
  • Thermal Overload protected
  • Signal Presence Indicators
  • Fault Indicators
  • Power Status Indicators
  • Rack Mountable (suits 19 inch racks)

Specifications

  • Power: 250 Watt RMS
  • Distortion: < 0.5%, @ 1kHz
  • Frequency response: 50Hz - 15kHz, -3dB
  • Output line: 100V, 70V, or 4 - 16Ω
  • Signal to noise ratio: (peak limiting by-passed) > 90 dB
  • Line output: 600Ω balanced, 0dBV, 3 pin XLR
  • Input Impedance: ~10KΩ

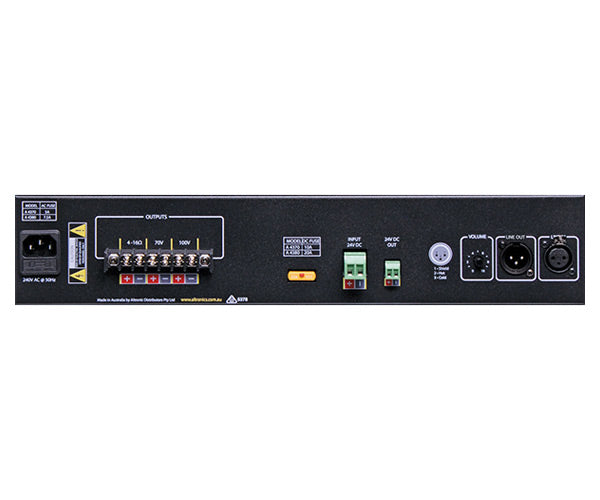

  • Speaker Connection: Screw terminals
  • 24V DC Output: Screw terminals
  • Inputs: 3 pin XLR (1V)
  • 24V-30V DC power: Screw terminals
  • 240V AC power: IEC power connector
  • Indicators: Mains, 24V DC, Power, Signal presence, Over temp, Over current, Shut down, Peak limiting
  • Current draw: 250mA Standby, 17A Full @ 24V DC
  • Protection: 7.5A AC and 20A DC fuse
  • Power supply: 240V AC or 24V DC (nominal)
  • Dimensions: 483W x 340D x 88 mm
  • Weight: 14kg
