Description
The Redback Phase 5 amplifier series was designed and developed over a span of 2 years in Australia, adhering to strict engineering standards. Extensive input and consultation from professional sound contractors and installers nationwide contributed to the remarkable performance and reliability of this series. With a multitude of features, these amplifiers are highly recommended for demanding industrial PA system applications. Furthermore, they feature on-demand multi-staged thermally cued fan forced cooling.

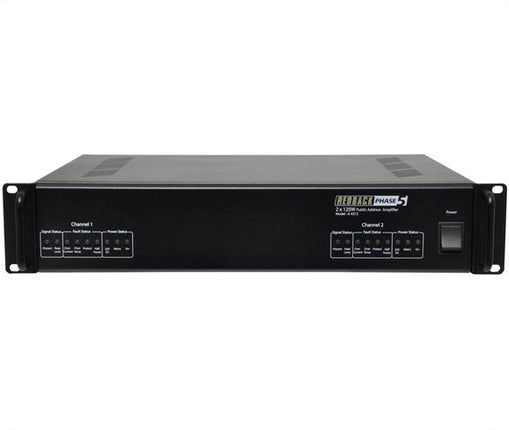

The output power stage of the Redback Phase5 Boost Public Address 2x125W Amplifier A4372 is equipped with thermal monitoring, allowing for automatic operation of a long-lasting computer-style cooling fan that can be switched "off" or "on" based on airflow needs. In normal use or during paging mode, the fan remains inactive. However, over temperature sensing is in place to safeguard against extreme overheat situations, such as excessive load or improper use of the amplifier. The system will automatically restart once normal temperatures are reached, and there is also output peak limiting for added protection.
The output voltage is capped at a maximum of 105V RMS regardless of the load impedance, to protect the speaker load from damage. Compared to standard 100V line PA amplifiers, which can supply over 180 volts in high drive and low load conditions, this amplifier's output voltage is significantly lower. This is important, as excessive voltage can rapidly destroy any connected loudspeakers.
Features
- Robust design incorporating latest Mosfet technology
- Very Low noise and distortion
- 100V outputs
- 240V AC or 24V DC operation
- Multi stage thermally cued fan cooling
- Output Peak Limited
- Thermal Overload protected
- Signal Presence Indicators
- Fault Indicators
- Power Status Indicators
- Rack Mountable (suits 19 inch racks)
- Power Output: 2 x 125 Watts RMS
- Distortion: < 0.5%, @ 1kHz
- Output Line: 100V
Frequency Response
- Mic Inputs: 50Hz - 12kHz, -3db
- Mic Sensitivity (3 pin XLR): 500mV
Signal to noise ratio
- Mic Inputs: > 75db below rated output
- Line Output: 600Ω balanced, 0dB , 3 Pin XLR
Output Connectors
- Speakers: Screw terminals
Input Connectors
- Inputs: 3 pin XLR balanced
- 24V DC power: Screw terminals
- 240V AC power: IEC power connector
Controls
- Mic inputs: Volume
- Power: On/off switch
- Indicators: Power, signal present, output peak limiting, overtemp ,current limit, Protect, Half Power, 24V DC, Mains
- Power Supply: 240V AC or 24V DC
- Fuse Protection: 7.5A AC , 2x 10A DC
- Dimensions: ≈483W x 410D x 88H
