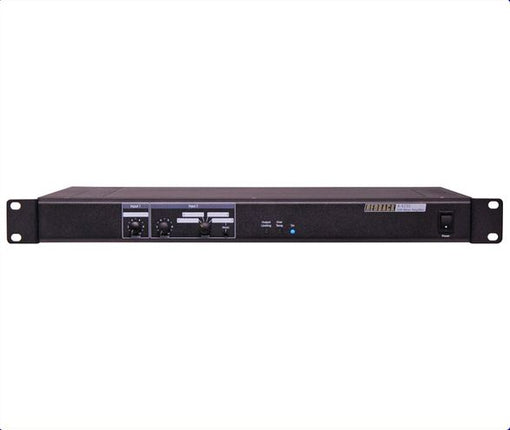

Redback Compact 1RU Public Address Mixer Amplifier 30W A4235

Description

Experience versatile and reliable sound amplification with Redback Compact 1RU Public Address Mixer Amplifier 30W A4235. Whether used as standalone or as a zone amplifier in larger systems, these compact 1RU rack mount amplifiers are the perfect solution. With the ability to operate on both 240V ac and 24V dc for battery backup, you can count on uninterrupted sound in any setting.

The Redback Compact 1RU Public Address Mixer Amplifier 30W A4235 includes six source options on two inputs, offering versatility for your audio needs. Input one features a 3-pin XLR with the option for balanced mic level (3mV) or balanced line level (2V), adjustable with a trimpot located on the rear panel. Additionally, a dual RCA and 3.5mm jack can be found on input one, with adjustable sensitivity of 100mV or 1V. Input two includes three sets of dual RCA sockets on the rear panel and a 3.5mm jack on the front panel. Selection between auxiliary sources is made simple with the front panel switch. Input one also offers the option for VOX mute of input two, selectable through DIP switches. Phantom power is available for the XLR input of input one. Convenient volume level controls are located on the front panel for both inputs one and two.

The Redback Compact 1RU Public Address Mixer Amplifier 30W A4235 includes advanced protection features for safeguarding against output over voltage, over current, and over temperature. These features are automatically reset once the fault is resolved, with clear visual indication provided through front panel LEDs to display the amplifier's status at all times.

Features

  • Compact 1RU 19” rack mount design
  • Balanced mic or line input
  • 100V line output
  • VOX muting
  • Phantom power
  • Four auxiliary inputs
  • Overload limiting
  • Over voltage limiting
  • On demand fan cooling
  • Over temperature shut down protection
  • Dual input connectors
  • Variable input sensitivities
  • 240V ac / 24V dc operation

Specifications

  • Distortion: < 0.5%, @ 1kHz
  • Frequency response: 50Hz - 15kHz, -3dB
  • Output line: 100V
  • Mic sensitivity: XLR balanced 2mV to 2V
  • Line sensitivity: RCA 100mV/1V, 3.5 TRS 600mV
  • Signal to noise ratio: > 80 dB
  • Input 1: 3 pin XLR balanced / dual RCA
  • Input 2: Dual RCA x 3 / 3.5mm TRS jack x 1
  • 24V dc power: Pluggable screw terminals
  • 240V ac power: IEC power connector
  • Speaker output: Pluggable screw terminals (100V line)
  • Current Draw: 160mA Standby, 2.5A Full @ 24V dc
  • Protection: 1A ac & 3A dc breaker
  • Dimensions: ≈ 483W x 210D x 44H
  • A 4235 Weight: ≈ 4.5kg

Read more

Product form

$669.00

    ⏰ Order now, ships today!
    • Free shipping Australia-wide on orders over $99.
    • Secure checkout. Your payment is encrypted and protected.

    Experience versatile and reliable sound amplification with Redback Compact 1RU Public Address Mixer Amplifier 30W A4235. Whether used as standalone... Read more

    • Secure & safe checkout

      paypal
    American Express Apple Pay Google Pay Mastercard PayPal Shop Pay Visa
    🇦🇺 Aussie Owned 📦 44,000+ Products Sold

    Description

    Experience versatile and reliable sound amplification with Redback Compact 1RU Public Address Mixer Amplifier 30W A4235. Whether used as standalone or as a zone amplifier in larger systems, these compact 1RU rack mount amplifiers are the perfect solution. With the ability to operate on both 240V ac and 24V dc for battery backup, you can count on uninterrupted sound in any setting.

    The Redback Compact 1RU Public Address Mixer Amplifier 30W A4235 includes six source options on two inputs, offering versatility for your audio needs. Input one features a 3-pin XLR with the option for balanced mic level (3mV) or balanced line level (2V), adjustable with a trimpot located on the rear panel. Additionally, a dual RCA and 3.5mm jack can be found on input one, with adjustable sensitivity of 100mV or 1V. Input two includes three sets of dual RCA sockets on the rear panel and a 3.5mm jack on the front panel. Selection between auxiliary sources is made simple with the front panel switch. Input one also offers the option for VOX mute of input two, selectable through DIP switches. Phantom power is available for the XLR input of input one. Convenient volume level controls are located on the front panel for both inputs one and two.

    The Redback Compact 1RU Public Address Mixer Amplifier 30W A4235 includes advanced protection features for safeguarding against output over voltage, over current, and over temperature. These features are automatically reset once the fault is resolved, with clear visual indication provided through front panel LEDs to display the amplifier's status at all times.

    Features

    • Compact 1RU 19” rack mount design
    • Balanced mic or line input
    • 100V line output
    • VOX muting
    • Phantom power
    • Four auxiliary inputs
    • Overload limiting
    • Over voltage limiting
    • On demand fan cooling
    • Over temperature shut down protection
    • Dual input connectors
    • Variable input sensitivities
    • 240V ac / 24V dc operation

    Specifications

    • Distortion: < 0.5%, @ 1kHz
    • Frequency response: 50Hz - 15kHz, -3dB
    • Output line: 100V
    • Mic sensitivity: XLR balanced 2mV to 2V
    • Line sensitivity: RCA 100mV/1V, 3.5 TRS 600mV
    • Signal to noise ratio: > 80 dB
    • Input 1: 3 pin XLR balanced / dual RCA
    • Input 2: Dual RCA x 3 / 3.5mm TRS jack x 1
    • 24V dc power: Pluggable screw terminals
    • 240V ac power: IEC power connector
    • Speaker output: Pluggable screw terminals (100V line)
    • Current Draw: 160mA Standby, 2.5A Full @ 24V dc
    • Protection: 1A ac & 3A dc breaker
    • Dimensions: ≈ 483W x 210D x 44H
    • A 4235 Weight: ≈ 4.5kg

    Read more
