Description

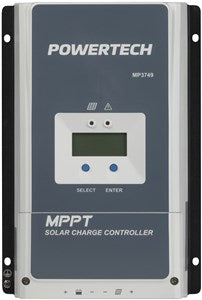

Our 60A MPPT Solar Charge Controller boasts up to 98% charging efficiency, allowing you to generate maximum power from solar arrays. It conveniently charges sealed, gel or flooded lead acid and lithium battery banks up to 32V and support 12V solar arrays up to 1125W and 24VDC arrays up to 2250W. With constant, float and bulk charging stages, monitoring current, voltage and other stats with an LCD screen, and heavy duty screw terminals for cabling up to 2AWG, this controller is perfect for a variety of applications.
Features:
- Advanced MPPT control technology
- High tracking and conversion efficiency
- Supports Sealed, Gel or flooded lead acid and Lithium batteries
- 3-stage intelligent charging
- Multiple load work modes
- Extensive electronic protection
- Backlit LCD display
- RS485 communication
- Common negative grounding
- Compatible Battery Bank Voltages 12 / 24VDC Selectable
- Solar Input Voltage: 16 - 100VDC
- Maximum Solar Array Size: 1125W/12VDC , 2250W / 24VDC
- Maximum Charge Output: 60A
- Maximum Load Current: 60A
- Dimensions: 340(H) x 232(W) x 105(D)mm, 3.5kg
Battery support:
Sealed, gel or flooded Lead-acid (8~17V/12V; 18~32V/24V)
LiFePO4 (12V/24V)
LiNiCoMnO2 (12V/24V)
LiFePO4 (12V/24V)
LiNiCoMnO2 (12V/24V)
Specifications
| Packaged Volume : 24.81l |
| Packaged Weight : 4.32kg |
| Packaged Length : 44.8cm |
| Packaged Width : 30.6cm |
| Packaged Height : 18.1cm |
| Width : 155mm |
| Height : 221mm |
| Depth : 52mm |
| Weight : 940g |
| DC Voltage : 16V, 100V |
| Max Solar Panel Array : 750W, 1500W |
| Charge Controller Technology : Maximum Power Point Tracking (MPPT) |
