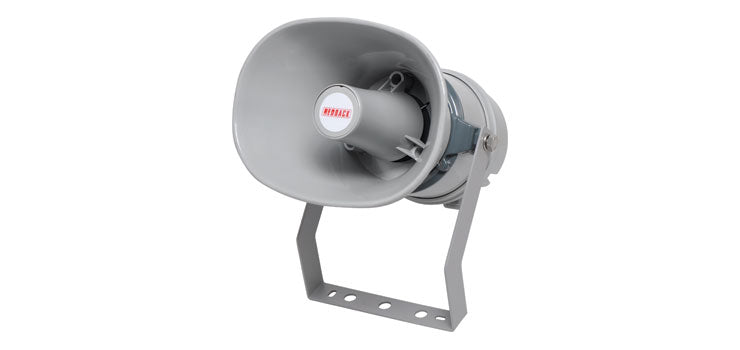

10W 100V EWIS IP66 AS ISO7240.24 Fire PA Horn Speaker

Description

The One-Shot horn is designed to meet AS ISO7240.24:2018 and saves installers time and money. Instead of removing three screws on the rear cover, connecting the cable, and re-installing the screws, the patented twist lock mechanism allows for easy installation without using any tools. With the added benefit of a dog leg mounting bracket, this horn is perfect for fire and evacuation systems that require clear speech and program clarity. It's commonly used in schools, train and bus stations, airports, car parks, and plant rooms.

Features

  • Designed to meet AS ISO7240.24:2018 for fire/evac installations
  • Requires no external EQ for AS ISO7240.24:2018 fire systems

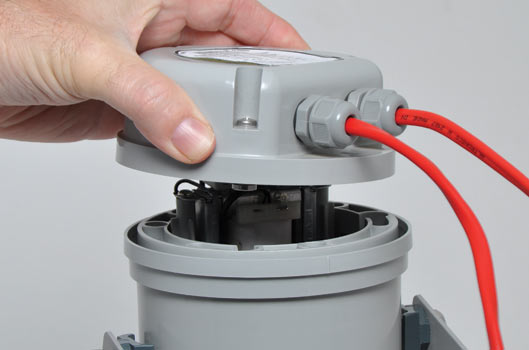

  • Twist lock cap reduces installation time
  • UV stabilised ABS construction
  • Excellent sound dispersion
  • IP66 rated for weather resistance
  • EWIS line monitoring system compatible
  • Two cable glands supplied for loop in, loop out wiring
  • Stainless steel mounting hardware
  • 5 year warranty

Specifications

  • Rated Noise Power: 10 Watts (100V line)
  • Power Taps & Impedance: 1.25W (8kΩ), 2.5W (4kΩ),  5W (2kΩ), 7.5W (1.33kΩ), 10W (1kΩ)
  • Sensitivity: Horizontal 104dB (1W @ 1m), 92dB (1W @ 4m), Vertical 103dB (1W @ 1m), 91dB (1W @ 4m)
  • Max SPL: Horizontal 112dB (10W @ 1m), 100dB (10W @ 4m), Vertical 112dB (10W @ 1m), 100dB (10W @ 4m)
  • Frequency Response: 100Hz - 12.5kHz, 500Hz - 6.3kHz 0±5dB
  • Coverage Angle (-6dB): Horizontal 500Hz: 95°, 1kHz: 120°, 2kHz: 90°, 4kHz: 40°, Vertical 500Hz: 130°, 1kHz: 130°, 2kHz: 115°, 4kHz: 55°
  • Environmental Type: B (for outdoor applications as per standard)
  • Speaker Component: Aluminium voice coil former
  • Mounting Depth: 259mm
  • Mounting Method: Wall bracket with mounting holes
  • Line Monitoring: Yes, 22µF bipolar capacitor
  • Applicable Cable: 2.5mm2 (14AWG) max conductor area
  • Connection: 4 way screw terminal
  • Finish: Flame retardant ABS (Absolac 300 MFR)
  • IP Rating: IP66
  • Operating temperature: -20°C to 55°C
  • Weight: 1.4kg
  • Shipping Weight: 1.91000Kg

Activ-Fire listed product.
This speaker has been tested and certified by the CSIRO under the active fire protection product certification scheme. This is a register of approved fire protection equipment used in fire and evacuation systems.

Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.

Product form

The One-Shot horn is designed to meet AS ISO7240.24:2018 and saves installers time and money. Instead of removing three screws... Read more

SKU: AL-CF2050G
Barcode: 9321758227695

1 in stock All Orders now shipped 6th January  Delivery times may vary based on your location and AU Post's service standards.

$149.00

    • Free shipping on all orders over $99*
    • 30 Day free no hassle returns - Even if you change your mind!
    • Secure Checkout Process! Shop with confidence!

    Description

    The One-Shot horn is designed to meet AS ISO7240.24:2018 and saves installers time and money. Instead of removing three screws on the rear cover, connecting the cable, and re-installing the screws, the patented twist lock mechanism allows for easy installation without using any tools. With the added benefit of a dog leg mounting bracket, this horn is perfect for fire and evacuation systems that require clear speech and program clarity. It's commonly used in schools, train and bus stations, airports, car parks, and plant rooms.

    Features

    • Designed to meet AS ISO7240.24:2018 for fire/evac installations
    • Requires no external EQ for AS ISO7240.24:2018 fire systems
    • Twist lock cap reduces installation time
    • UV stabilised ABS construction
    • Excellent sound dispersion
    • IP66 rated for weather resistance
    • EWIS line monitoring system compatible
    • Two cable glands supplied for loop in, loop out wiring
    • Stainless steel mounting hardware
    • 5 year warranty

    Specifications

    • Rated Noise Power: 10 Watts (100V line)
    • Power Taps & Impedance: 1.25W (8kΩ), 2.5W (4kΩ),  5W (2kΩ), 7.5W (1.33kΩ), 10W (1kΩ)
    • Sensitivity: Horizontal 104dB (1W @ 1m), 92dB (1W @ 4m), Vertical 103dB (1W @ 1m), 91dB (1W @ 4m)
    • Max SPL: Horizontal 112dB (10W @ 1m), 100dB (10W @ 4m), Vertical 112dB (10W @ 1m), 100dB (10W @ 4m)
    • Frequency Response: 100Hz - 12.5kHz, 500Hz - 6.3kHz 0±5dB
    • Coverage Angle (-6dB): Horizontal 500Hz: 95°, 1kHz: 120°, 2kHz: 90°, 4kHz: 40°, Vertical 500Hz: 130°, 1kHz: 130°, 2kHz: 115°, 4kHz: 55°
    • Environmental Type: B (for outdoor applications as per standard)
    • Speaker Component: Aluminium voice coil former
    • Mounting Depth: 259mm
    • Mounting Method: Wall bracket with mounting holes
    • Line Monitoring: Yes, 22µF bipolar capacitor
    • Applicable Cable: 2.5mm2 (14AWG) max conductor area
    • Connection: 4 way screw terminal
    • Finish: Flame retardant ABS (Absolac 300 MFR)
    • IP Rating: IP66
    • Operating temperature: -20°C to 55°C
    • Weight: 1.4kg
    • Shipping Weight: 1.91000Kg

    Activ-Fire listed product.
    This speaker has been tested and certified by the CSIRO under the active fire protection product certification scheme. This is a register of approved fire protection equipment used in fire and evacuation systems.

    Backed by an industry leading 5 Year Speaker Performance Warranty.
    This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
