Description
The Redback One-Shot Rat-Trap is a custom-designed speaker and transformer combo, meticulously crafted to deliver an expansive frequency spectrum, wide dispersion angle, and impressive sound pressure level (SPL), all vital for clear music and speech in urgent paging scenarios.
Drawing inspiration from the renowned Redback® One-Shot model, this 'rat trap' employs a patented spring mechanism that mimics the snap of a rat trap upon activation. It comes complete with three retaining clips to ensure a snug fit of the grille to the ceiling, preventing any sagging, even in soft ceilings. For optimal performance, we recommend using the T 2312A holesaw.
Equipped with a 4-way wire protect terminal block, 22µF bipolar capacitor, transformer safety cover, and cable restraint plate, meeting the requirements of Australian standards
Features
- Excellent speech intelligibility
- Engineered to meet Australian Standard AS1670.4
- High quality speaker driver developed for BGM, paging and emergency warning applications
- Patented 3 way latching ensures a neat, sag free installation.
- Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
- Fitted with cable restraint plate and transformer safety cover as required by Australian Standards.
- Fitted with supervisory capacitor for line monitoring.
- High impact styrene grille.
- 5 year warranty.
Specifications
- Power taps: 0.33, 0.66, 1.25 , 2.5, 5W
- SPL 1W @ 1m: 92dB @ 1KHz ±2dB
- Freq response: 100Hz - 15kHz
- Ceiling cutout: 140mm Ø
- Shipping Weight: 0.65500Kg
Suits EWIS Systems
This speaker and transformer combination is designed for both paging announcements and emergency tones in EWIS systems. Speakers employed in an EWIS installation must comply to AS1670.4. This dictates that the speakers must be fitted with transformer safety cover, cable restraint plate, line monitoring capacitor and 4 way wire protect terminal connection. The Redback C 2168C EWIS speaker complies to this standard.
Manufacturing & Performance
Redback® drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity. A strict quality control procedure is employed during every step of the manufacturing process. Finally, every finished speaker is 100% QC checked prior to shipping.
About Redback® Speakers
Each custom designed speaker and transformer combination has been specifically engineered to ensure a wide frequency range and dispersion angle, plus a high sound pressure level (SPL) ensuring excellent music and speech intelligibility; which is critical for emergency paging applications.
Each transformer is fitted with multiple power settings which are user selectable via taps on the transformer. For reference, the transformer safety cover is imprinted with power selection information.
The Labour Saving One-Shot® Mounting System

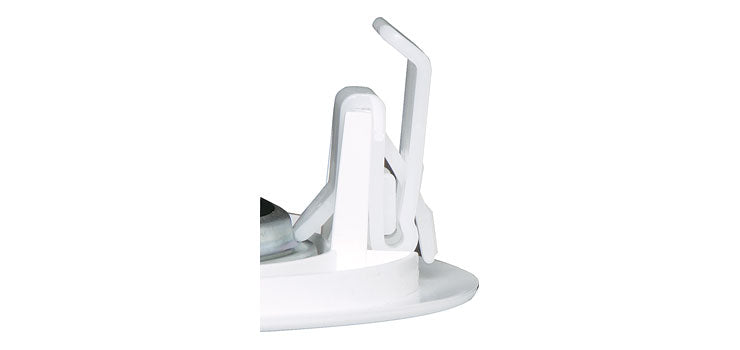

Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. The “Rat-Trap” version is the first “One-Shot®” to utilise a retaining 3 way spring latching system. Each latch is set like a rat trap before installation into the speaker hole. When the speaker is pushed into the ceiling, the latches spring open, securing the speaker in place. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit to either gyprock tiles, mineral fibre tiles or fixed gyprock ceilings. A neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation.
Installation Guidelines
The C 2168C is fitted with a 4 way wire protect screw terminal block. This is suitable for loop in, loop out cabling. The cable can be secured to the in-built restraint plate with 100mm cable ties. All One-Shot® speakers are designed for fast installation due to the integral pressure clips which grip to the reverse side of the ceiling tile. They suit any 10-13mm ceiling tile, including gyprock, mineral fibre or fixed gyprock ceilings. Redback provide a range of optional tile supports to minimise sag and vibration.
Ceiling support pans: These pans fit inside the ‘t-bar’ supports for the tile ceiling and provide a solid surface on which the One-Shot® clips secure to. Once the hole is cut, these simply slide up into the hole, the speaker is then pushed in until the clips release.
Ceiling support ring: This plastic ‘split-ring’ offers the same protection for soft tiles. With the added benefit of being lightweight and compact.
For 100mm (4”) models we recommend a speaker hole of 140mm. This is easily cut using the T 2312A holesaw.
