Description

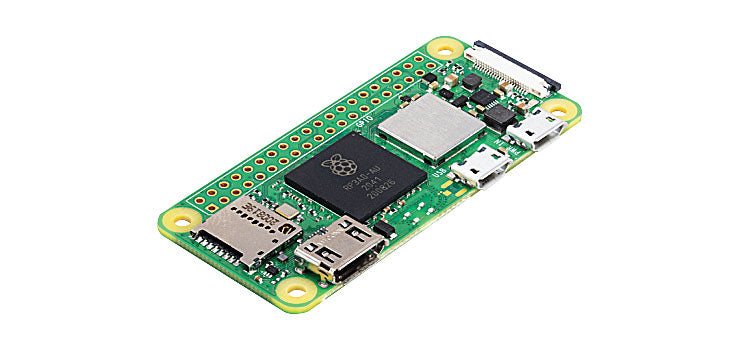

Introducing the Raspberry Pi Zero 2 W, the newest addition to our cost-effective line of single-board computers. This successor to the groundbreaking Raspberry Pi Zero W is a compatible replacement for the original board, featuring the same form factor.

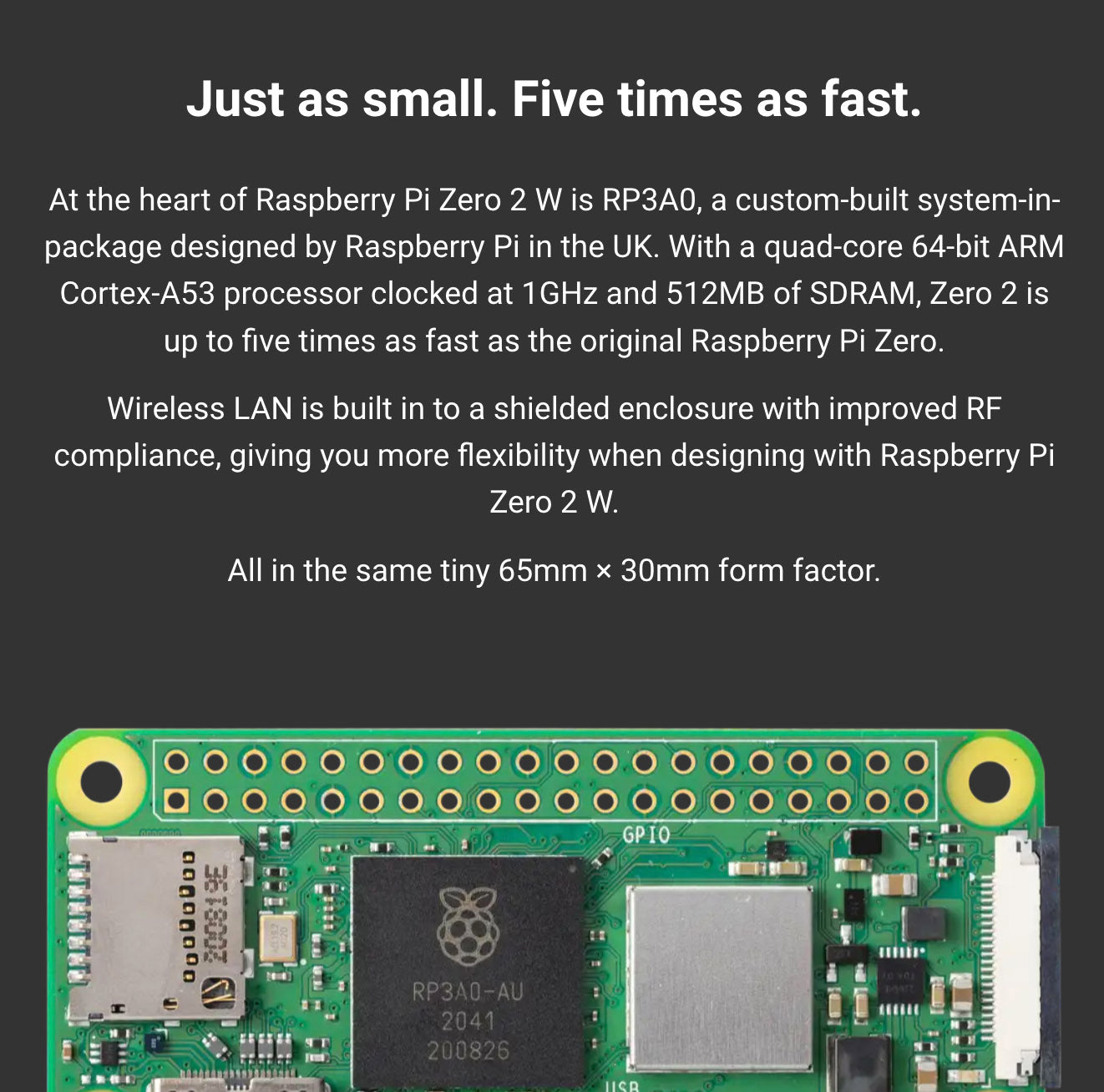

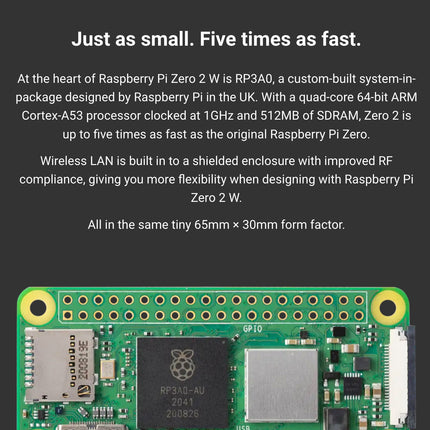

The board incorporates a quad-core 64-bit Arm Cortex-A53 CPU, clocked at 1GHz. At The Raspberry Pi Zero 2 W Essentials Kit Z6296 features a Raspberry Pi RP3A0 SiP with a Broadcom BCM2710A1 die and 512MB of LPDDR2 SDRAM. With an upgraded processor, this device boasts 40% more single-threaded performance and five times more multi-threaded performance than its single-core predecessor, the Raspberry Pi Zero.

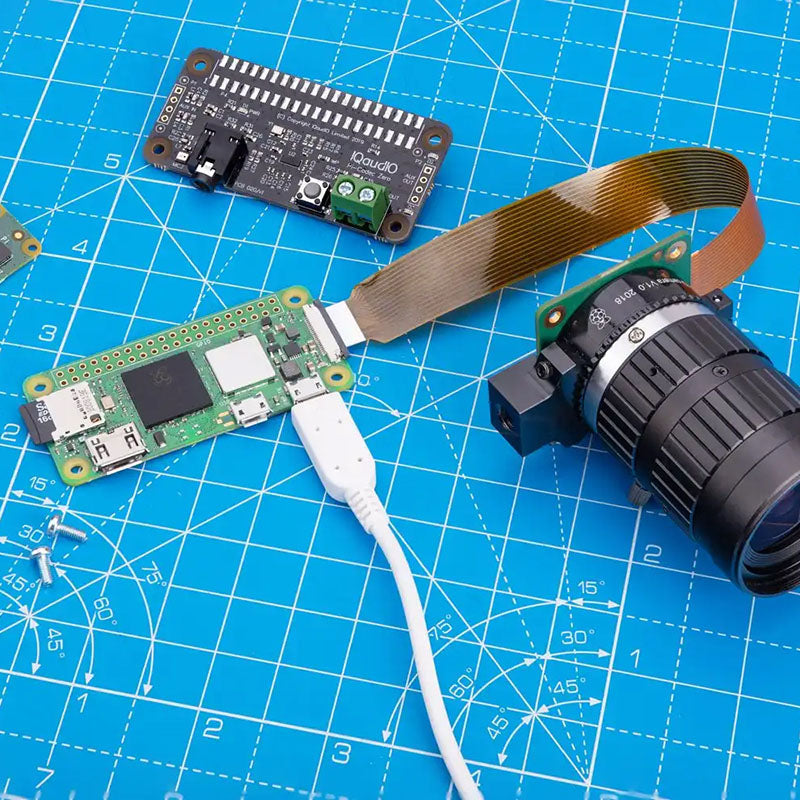

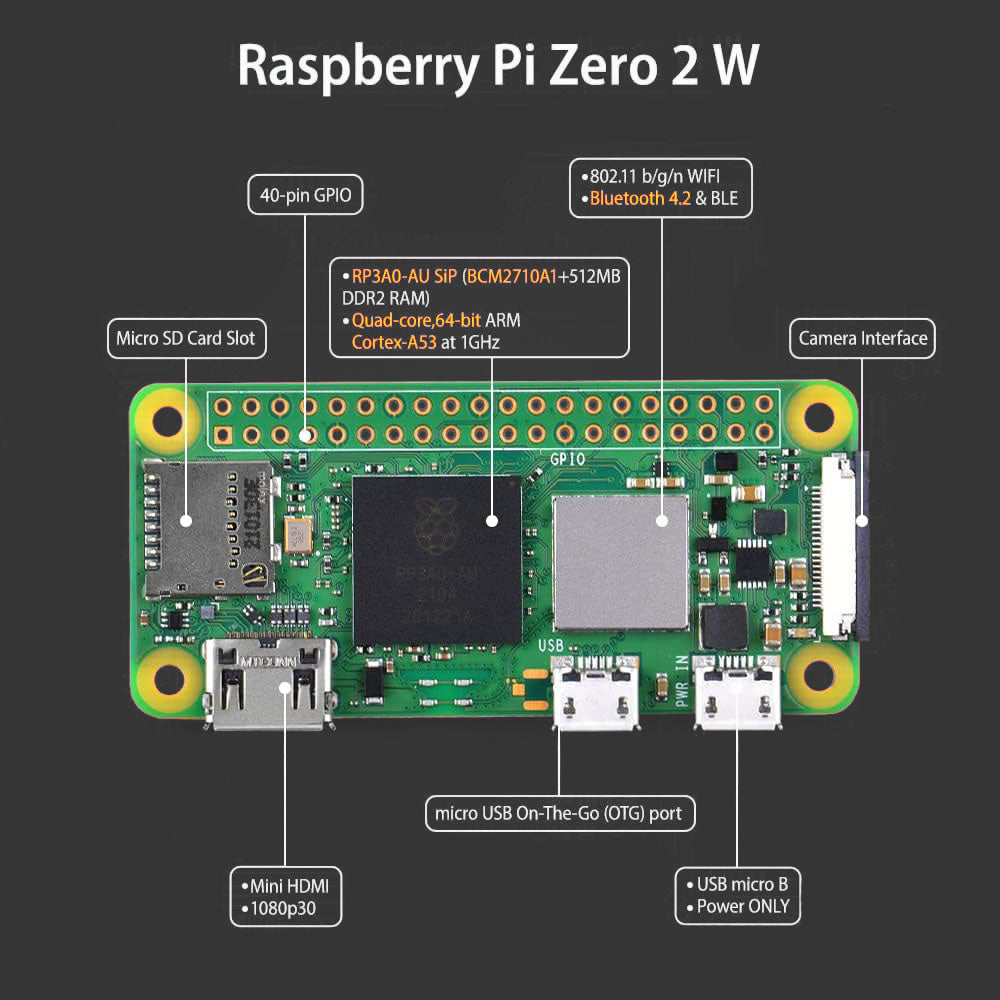

Equipped with 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2, the Raspberry Pi Zero 2 W also offers support for Bluetooth Low Energy (BLE) and adheres to modular compliance certification standards. The board features a microSD card slot, CSI-2 camera connector, USB On-The-Go (OTG) port, and an unpopulated footprint for a HAT-compatible 40-pin GPIO header. Power is supplied through a micro USB socket, and video can be outputted through a mini HDMI port. Additionally, composite video output is easily accessible via test points.
The Raspberry Pi Zero 2 W has the same form factor as the original Raspberry Pi Zero, allowing it to fit seamlessly into most existing Raspberry Pi Zero cases.

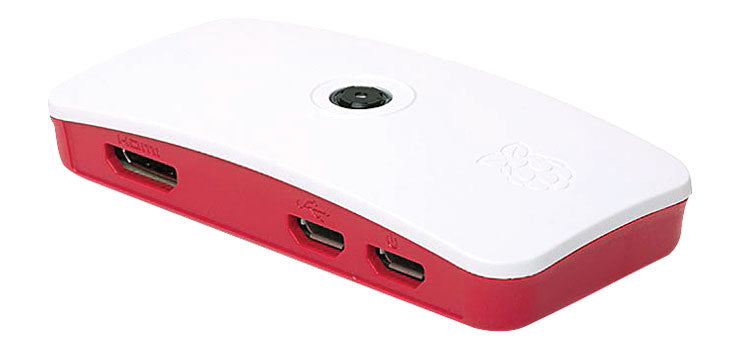

Official case includes three lids - a solid lid, a square cut out lid for GPIO pin access and a lid to suit the Raspberry Pi camera module.

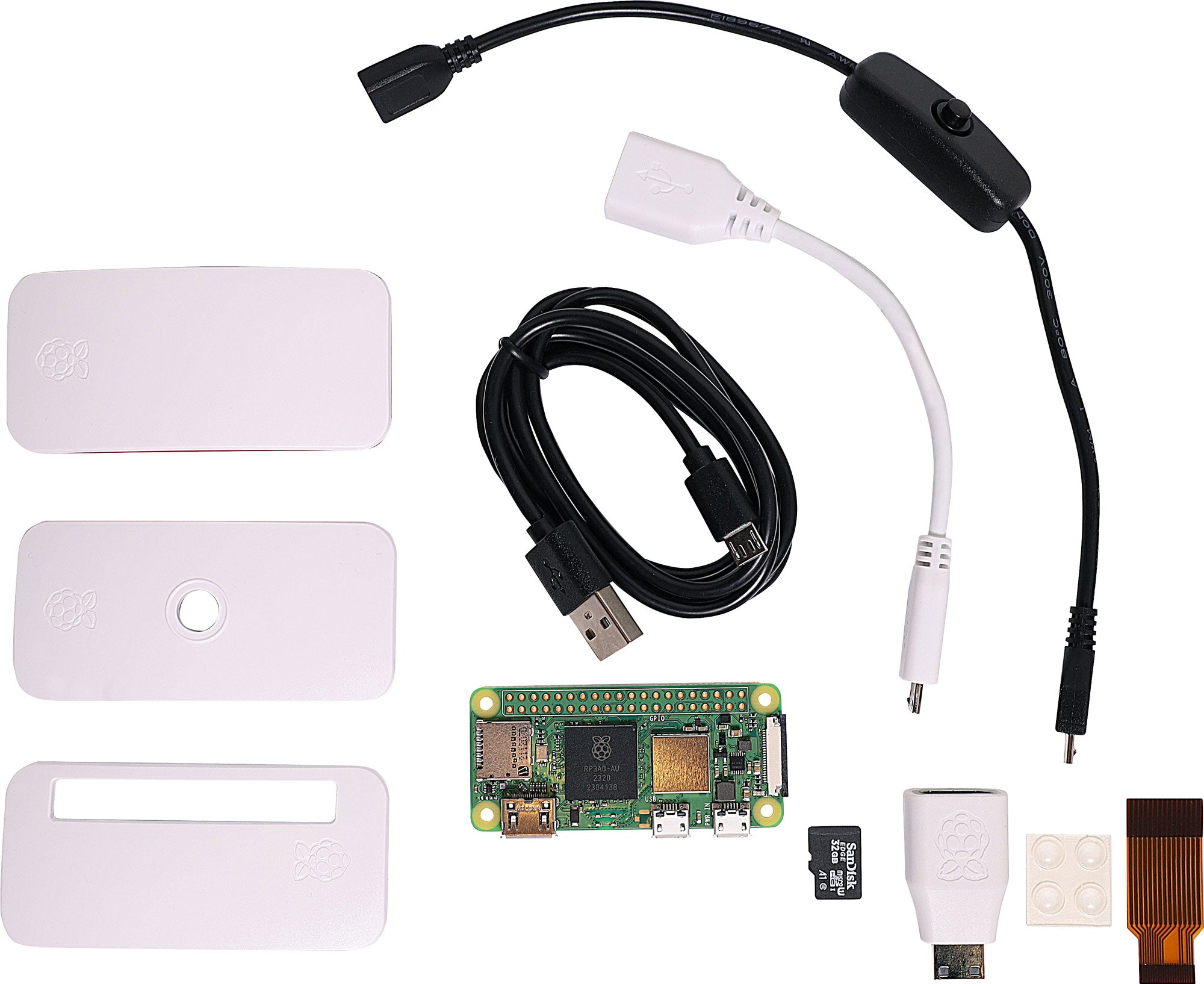

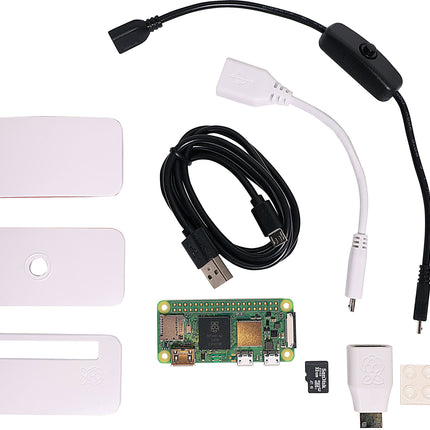

Kit Contents:
-
Raspberry Pi Zero 2 W Single Board Computer
- Pi Zero Micro USB Power Cable
- In-line Power Switch Cable for Pi Zero
- Raspberry Pi Zero W Case / Enclosure (Official)
- Raspberry Pi Zero W Camera Connector
- Mini HDMI to Standard HDMI Jack Adapter (for Raspberry Pi Zero)
- Micro USB OTG Host Cable (for Raspberry Pi Zero)
- 32GB MicroSD Card with NOOBS for all Raspberry Pi Boards
- SD to USD Adaptor
- Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- 4GB LPDDR4-2400 SDRAM (depending on model)
- 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
- Gigabit Ethernet
- 2 USB 3.0 ports; 2 USB 2.0 ports.
- Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
- 2 × micro-HDMI ports (up to 4kp60 supported)
- 2-lane MIPI DSI display port
- 2-lane MIPI CSI camera port
- 4-pole stereo audio and composite video port
- H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
- OpenGL ES 3.0 graphics
- Micro-SD card slot for loading operating system and data storage
- 5V DC via USB-C connector (minimum 3A*)
- 5V DC via GPIO header (minimum 3A*)
- Power over Ethernet (PoE) enabled (requires separate PoE HAT)
- Operating temperature: 0 – 50 degrees C ambient
