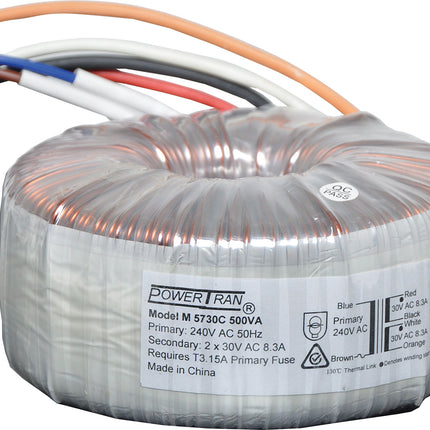

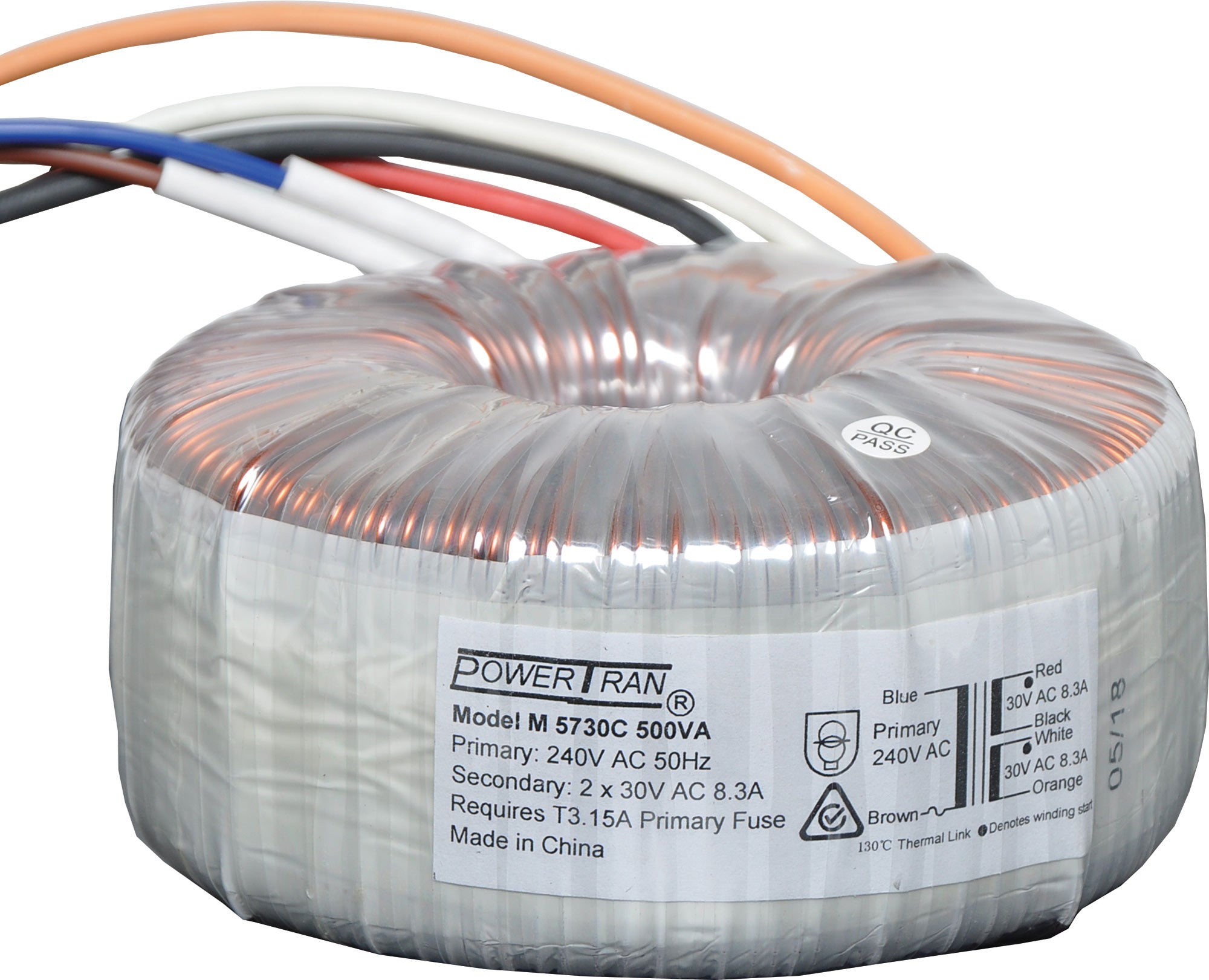

Powertran 30 + 30 500VA Toroidal Transformer M5730C

Description

Toroidal transformers, with their enhanced magnetic properties, are gaining popularity. The symmetrical donut shape minimizes leakage flux, leading to reduced electromagnetic interference (EMI) in surrounding circuits and equipment. This is especially crucial in contemporary, high-frequency electronics where low power is a priority.

Toroidal transformers are designed with a lower profile compared to standard solenoid core transformers, making it possible to have more compact equipment with equivalent power capacity.
Recommended External Primary Fuse: Slow blow Littelfuse 218 Series T3.15A L250VP

Included Mounting Hardware

  • 1 x Metal Washer: Φ8.5 x 90 x 1.2mm
  • 2 x Rubber Washer: Φ8.5 x 120 x 1.5mm
  • 1 x M8 x 70 Screw
  • 1 x M8 Hex Nut
  • 1 x M8 Washer
  • 1 x M8 Lock Washer

Specifications

  • Safety Standard: AS/NZS 61558-2-6 Certified
  • Primary voltage: 240V AC 50Hz
  • Secondary voltage: 30V (parallel), 60V (series)
  • Secondary current: 16.6A (parallel), 8.3A (series)
  • Regulation: Better than 10%
  • Maximum temperature rise: 75°C
  • Maximum ambient Temperature: 25°C
  • Dielectric strength: 4000V for 1 Minute
  • Insulation class: Class B (130ºC)
  • Tolerance: ± 2%
  • Thermal Protector: Thermal cut-out 17AM033A5 130℃ 9A 250V
  • Winding Wire: Enamelled Copper
  • Pri. Winding: 574Ts¢0.96mm
  • Sec. Winding: 75Ts+75Ts¢1.8mm
  • Sec. Rating: 2 x 30VAC, 8.3A
  • Pri. Lead Wire: UL1672 AWG#18, 105°C, VW-1, 300V, double insulation
  • Sec. Lead Wire: UL3321 AWG#12 150 °C VW-1, 600V, Single insulation

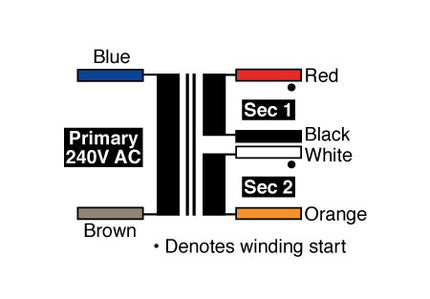

Wiring

Secondary (SEC) Current A
Current available where secondaries are connected in parallel.

Secondary (SEC) Current B
Current available where secondaries are connected in series.

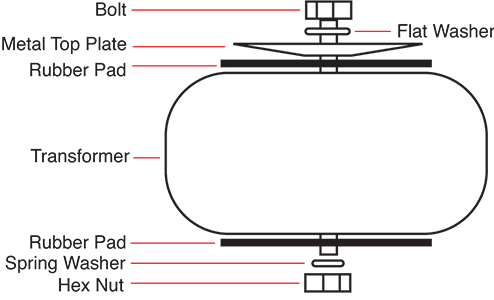

Mounting


Features

  • Decrease electrical interference for compact equipment by utilizing the Powertran 30 + 30 500VA Toroidal Transformer M5730C, designed with noise reduction in mind..
  • The Powertran 30 + 30 500VA Toroidal Transformer M5730C boasts a high efficiency that allows for a conservative rating while still retaining its size advantages.
  • Toroidal transformers have become the accepted industry standard due to their size, weight, and reduced radiated field, replacing the older laminated type. This is thanks to their various advantages, making them the preferred choice for those seeking efficiency and reliability.

Product form

Toroidal transformers, with their enhanced magnetic properties, are gaining popularity. The symmetrical donut shape minimizes leakage flux, leading to reduced... Read more

SKU: AL-M5730C
Barcode: 9321758198278

1 in stock All Orders now shipped 6th January  Delivery times may vary based on your location and AU Post's service standards.

$189.00 $185.00

    • Free shipping on all orders over $99*
    • 30 Day free no hassle returns - Even if you change your mind!
    • Secure Checkout Process! Shop with confidence!

    Description

    Toroidal transformers, with their enhanced magnetic properties, are gaining popularity. The symmetrical donut shape minimizes leakage flux, leading to reduced electromagnetic interference (EMI) in surrounding circuits and equipment. This is especially crucial in contemporary, high-frequency electronics where low power is a priority.

    Toroidal transformers are designed with a lower profile compared to standard solenoid core transformers, making it possible to have more compact equipment with equivalent power capacity.
    Recommended External Primary Fuse: Slow blow Littelfuse 218 Series T3.15A L250VP

    Included Mounting Hardware

    • 1 x Metal Washer: Φ8.5 x 90 x 1.2mm
    • 2 x Rubber Washer: Φ8.5 x 120 x 1.5mm
    • 1 x M8 x 70 Screw
    • 1 x M8 Hex Nut
    • 1 x M8 Washer
    • 1 x M8 Lock Washer

    Specifications

    • Safety Standard: AS/NZS 61558-2-6 Certified
    • Primary voltage: 240V AC 50Hz
    • Secondary voltage: 30V (parallel), 60V (series)
    • Secondary current: 16.6A (parallel), 8.3A (series)
    • Regulation: Better than 10%
    • Maximum temperature rise: 75°C
    • Maximum ambient Temperature: 25°C
    • Dielectric strength: 4000V for 1 Minute
    • Insulation class: Class B (130ºC)
    • Tolerance: ± 2%
    • Thermal Protector: Thermal cut-out 17AM033A5 130℃ 9A 250V
    • Winding Wire: Enamelled Copper
    • Pri. Winding: 574Ts¢0.96mm
    • Sec. Winding: 75Ts+75Ts¢1.8mm
    • Sec. Rating: 2 x 30VAC, 8.3A
    • Pri. Lead Wire: UL1672 AWG#18, 105°C, VW-1, 300V, double insulation
    • Sec. Lead Wire: UL3321 AWG#12 150 °C VW-1, 600V, Single insulation

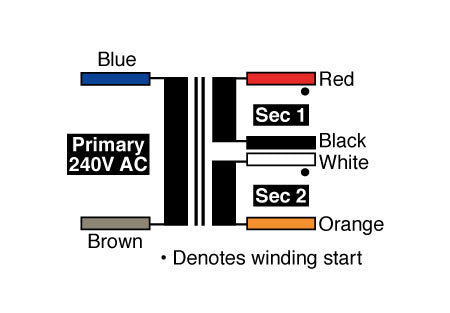

    Wiring

    Secondary (SEC) Current A
    Current available where secondaries are connected in parallel.

    Secondary (SEC) Current B
    Current available where secondaries are connected in series.




    Mounting


    Features

    • Decrease electrical interference for compact equipment by utilizing the Powertran 30 + 30 500VA Toroidal Transformer M5730C, designed with noise reduction in mind..
    • The Powertran 30 + 30 500VA Toroidal Transformer M5730C boasts a high efficiency that allows for a conservative rating while still retaining its size advantages.
    • Toroidal transformers have become the accepted industry standard due to their size, weight, and reduced radiated field, replacing the older laminated type. This is thanks to their various advantages, making them the preferred choice for those seeking efficiency and reliability.
