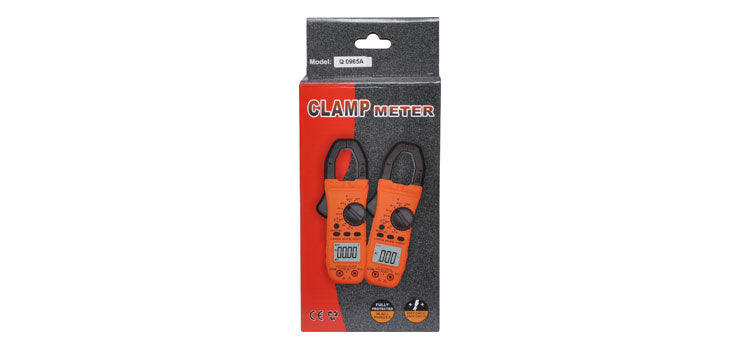

High Current AC/DC Clamp Meter 800A

Description

This clamp meter can measure both AC and DC currents up to 800A, making it highly versatile. You simply clamp the jaws around the conductor, and the display shows the current. It's not just limited to currents; it can also test DC volts, AC volts, resistance, capacitance, frequency, temperature, and continuity. Additionally, it has a built-in voltage detector to sense live AC voltages in cables or outlets. With features like data hold and relative measurement, it's a must-have tool for electricians, technicians, and instrument fitters working with high voltage. It comes with quality test leads, a temperature probe, and a carry case for convenience.

Features

  • 800A AC/DC range
  • 10mA resolution
  • Backlit LCD
  • 28mm clamp opening
  • Auto power off
  • 6000 count LCD readout
  • Data hold and relative functions
  • Test leads, temperature probe and carry case included
  • 2 x AAA battery included
  • Cat II 600V, Cat III 300V

Specifications

  • Voltage DC: 600mV - 600V (±0.5%+5d)
  • Voltage AC: 600mV - 600V (±1%+5d)
  • Current AC/DC: 800A (±1.5%+5d)
  • Resistance: 600Ω - 60MΩ (±1%+25)
  • Capacitance: 60nF - 6600μF (±5%+20)
  • Frequency: 20MHz (±1%+3)
  • Duty cycle: 5% - 99.9% (±1.2%+3d)
  • Continuity: 50Ω threshold, audible tone
  • Diode test: Yes
  • Display: 3.75 digit LCD, 6000 count, backlit
  • Dimensions: 65W x 36D x 186H mm
  • Shipping Weight: 0.37000Kg
Product form

This clamp meter can measure both AC and DC currents up to 800A, making it highly versatile. You simply clamp... Read more

SKU: AL-Q0965A
Barcode: 9321758238134

Out of stock

$89.95

    • Free shipping on all orders over $99*
    • 30 Day free no hassle returns - Even if you change your mind!
    • Secure Checkout Process! Shop with confidence!

    Description

    This clamp meter can measure both AC and DC currents up to 800A, making it highly versatile. You simply clamp the jaws around the conductor, and the display shows the current. It's not just limited to currents; it can also test DC volts, AC volts, resistance, capacitance, frequency, temperature, and continuity. Additionally, it has a built-in voltage detector to sense live AC voltages in cables or outlets. With features like data hold and relative measurement, it's a must-have tool for electricians, technicians, and instrument fitters working with high voltage. It comes with quality test leads, a temperature probe, and a carry case for convenience.

    Features

    • 800A AC/DC range
    • 10mA resolution
    • Backlit LCD
    • 28mm clamp opening
    • Auto power off
    • 6000 count LCD readout
    • Data hold and relative functions
    • Test leads, temperature probe and carry case included
    • 2 x AAA battery included
    • Cat II 600V, Cat III 300V

    Specifications

    • Voltage DC: 600mV - 600V (±0.5%+5d)
    • Voltage AC: 600mV - 600V (±1%+5d)
    • Current AC/DC: 800A (±1.5%+5d)
    • Resistance: 600Ω - 60MΩ (±1%+25)
    • Capacitance: 60nF - 6600μF (±5%+20)
    • Frequency: 20MHz (±1%+3)
    • Duty cycle: 5% - 99.9% (±1.2%+3d)
    • Continuity: 50Ω threshold, audible tone
    • Diode test: Yes
    • Display: 3.75 digit LCD, 6000 count, backlit
    • Dimensions: 65W x 36D x 186H mm
    • Shipping Weight: 0.37000Kg
