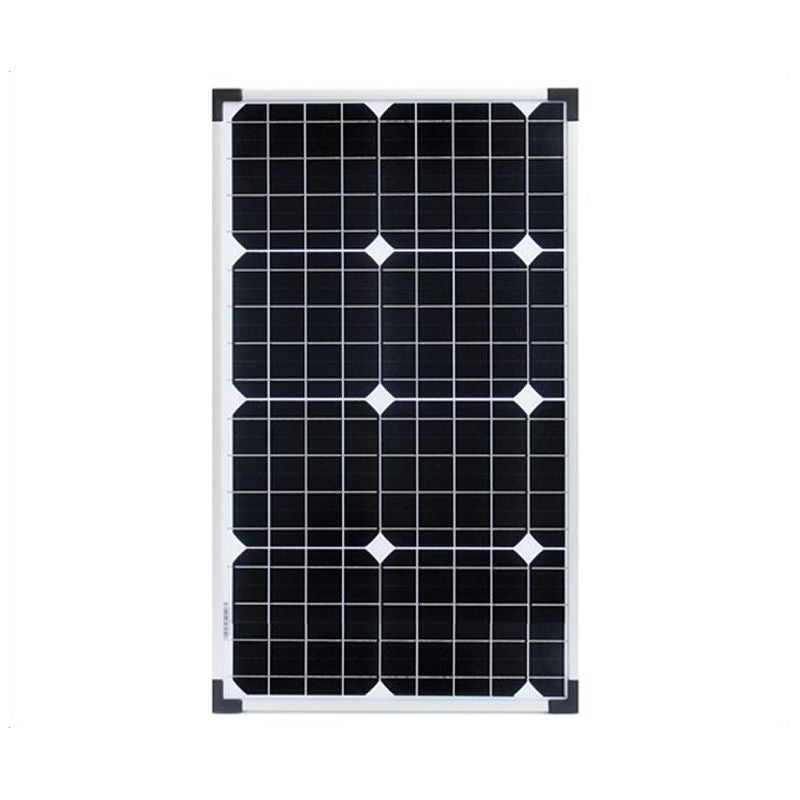

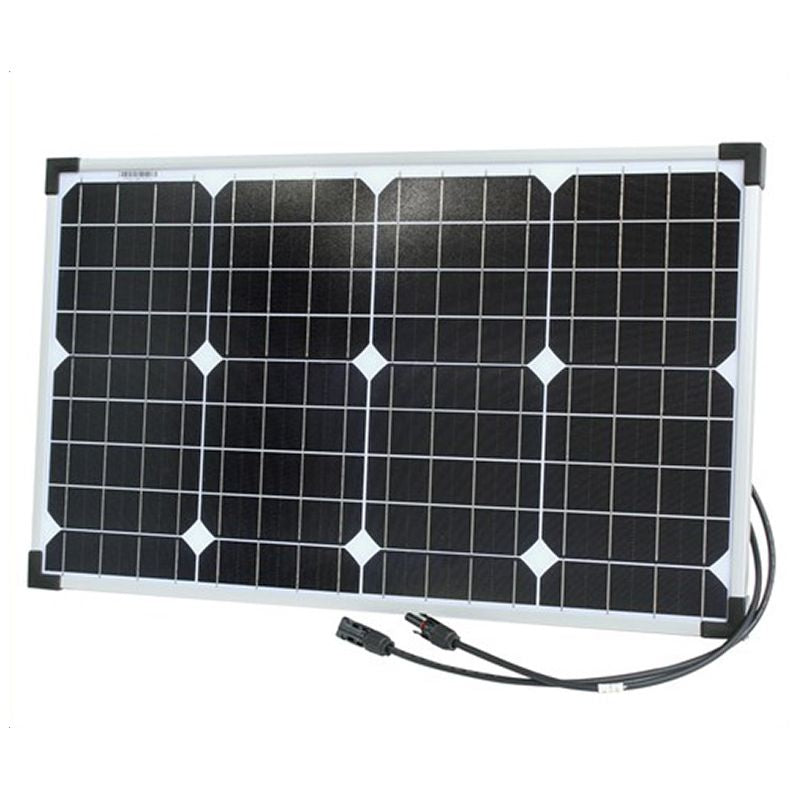

Powertech ZM9056 – 12V 40W Monocrystalline Solar Panel
Reliable Off-Grid Power for Small Systems
The Powertech 12V 40W Monocrystalline Solar Panel (ZM9056) is the perfect solution for powering boats, RVs, small home systems, and outdoor applications. With high-performance monocrystalline cells and rugged construction, this panel delivers up to 40W of continuous power while withstanding harsh weather conditions.
Designed with a durable aluminium frame, tempered glass cover, and a sealed junction box, this panel ensures long-lasting, reliable energy generation. Built-in bypass diode technology prevents overheating and the dreaded “hot spot effect”, extending both efficiency and panel life.
Backed by a 25-year limited warranty, the ZM9056 is a dependable choice for anyone seeking clean, renewable energy in a compact, easy-to-install format.
Key Features:
-
40W Power Output – Reliable 12V performance for small-scale applications
-
High-Efficiency Monocrystalline Cells – Delivers consistent energy in various conditions
-
Durable Construction – Aluminium frame + tempered glass cover for long-lasting protection
-
Sealed Junction Box – Weatherproof design for outdoor use
-
Bypass Diode Protection – Prevents overheating and hot spot damage
-
Easy Setup & Low Maintenance – Compatible with common inverters and universal mounting systems
-
25-Year Limited Warranty – Covers construction defects (5 years) and power output retention (80% for 25 years)
Specifications:
-
Maximum Power (Pmax): 40W
-
System Output Voltage: 12V
-
Open Circuit Voltage (Voc): 21.5V
-
Short Circuit Current (Isc): 2.5A
-
Voltage at Max Power (Vmp): 17.2V
-
Current at Max Power (Imp): 2.33A
-
Termination: 4mm PV Plug (MC4 style)
-
Cable Length: 900mm
-
Panel Dimensions: 664 × 408 × 25 mm
-
Weight: 3.5 kg (packaged)
-
Mounting Method: Standard universal with aluminium frame
-
Cover Material: Tempered glass
-
Ingress Protection: Weather-resistant sealed junction box
-
Bypass Diode: Included
Ideal For:
- Small Home Solar Systems
- Marine & Boating Power
- RV & Caravan Off-Grid Solutions
- Camping & Outdoor Setups
- Backup & Emergency Power
Why Choose the Powertech ZM9056?
-
Compact, rugged, and efficient – ideal for mobile and small-scale applications
-
Built to last – 25-year limited warranty and weatherproof design
-
Delivers stable energy in harsh conditions with minimal maintenance
