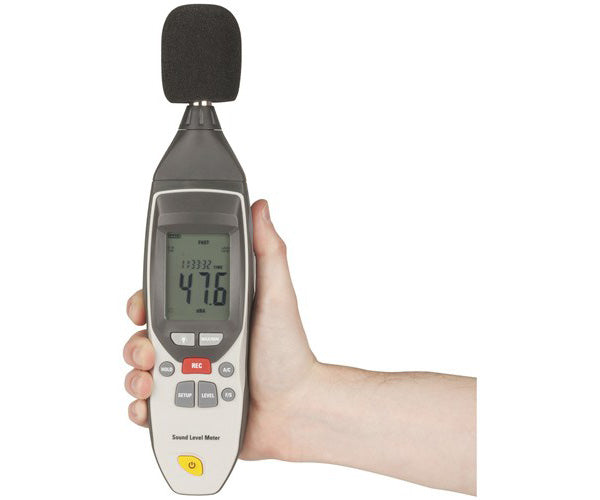

Protech Pro Sound Level Meter with Calibrator QM1598

Description

This professional grade sound level meter is designed for all kinds of environmental sound measurement projects. It features a wide dynamic range from 30dB to 130dB, fast (125ms) or slow (1s) time weighting to get an ambient reading or a short noise. minimum, maximum and data hold values, and A & C weightings to get the right response for the human ear. Other features include backlit display with date and time, data logger function, analogue AC/DC outputs for connection to a frequency analyser, and a USB port to connect to your PC for further analysis. Includes an Alarm function which can be set to Over and Under thresholds. Great for car audio installers, clubs and PA. This product offers unparalleled accuracy and performance, along with convenient features like a backlit display, date and time, a data logger function, and alarm settings for over and under threshold. The USB port allows you to connect to your PC for further analysis, making this an essential tool for professionals.

Features:

  • 30dB to 130dB
  • MAX & MIN measurements
  • Over range display
  • Under range display
  • A & C Weighting
  • FAST (125ms) & SLOW (1s) response
  • Data logger
  • IEC61672-1CLASS2 Standard
  • ±1.4dB Accuracy
  • 32700 Memories
  • 1/2 inch electret condenser microphone
  • 2 times/sec Display Update
  • Analogue Output
  • USB Connectivity

Level Ranges:

  • Low: 30dB~80dB
  • Med: 50dB~100dB
  • Hi: 80dB~130dB
  • Auto: 30dB~130dB


Analogue Output:

  • AC/DC outputs from earphone outlet AC=1Vrms ,DC=10mV/dB

Specifications

Sound range : 30dB, 130dB
Weighting : A WeightedC Weighted
Frequency Range : 31.5Hz, 8kHz
Response : Fast: 125ms, Slow: 1s
Dynamic Range : 50dB
Resolution : 0.1dB
Digits Displayed : 4digit
Display Type : LCD
Length : 278mm
Width : 76mm
Depth : 50mm
Weight : 350g
Battery used for : Main Product
Size / Shape : 9V
Type : Alkaline
Battery quantity : 1pc
Batteries included : true
Batteries can be replaced by user : true
Runtime : 25hr, 30hr
Packaged Volume : 12.41l
Packaged Weight : 2.05kg
Packaged Length : 29cm
Packaged Width : 38.9cm
Packaged Height : 11cm
Automatic Shut-off : 15min
Product form

This professional grade sound level meter is designed for all kinds of environmental sound measurement projects. It features a wide... Read more

SKU: EL-QM1598
Barcode: 9319236758618

7 in stock All Orders now shipped 6th January  Delivery times may vary based on your location and AU Post's service standards.

$329.00 $299.00

    • Free shipping on all orders over $99
    • 30 Day free no hassle returns - Even if you change your mind!
    • Secure Checkout Process! Shop with confidence!

    Description

    This professional grade sound level meter is designed for all kinds of environmental sound measurement projects. It features a wide dynamic range from 30dB to 130dB, fast (125ms) or slow (1s) time weighting to get an ambient reading or a short noise. minimum, maximum and data hold values, and A & C weightings to get the right response for the human ear. Other features include backlit display with date and time, data logger function, analogue AC/DC outputs for connection to a frequency analyser, and a USB port to connect to your PC for further analysis. Includes an Alarm function which can be set to Over and Under thresholds. Great for car audio installers, clubs and PA. This product offers unparalleled accuracy and performance, along with convenient features like a backlit display, date and time, a data logger function, and alarm settings for over and under threshold. The USB port allows you to connect to your PC for further analysis, making this an essential tool for professionals.

    Features:

    • 30dB to 130dB
    • MAX & MIN measurements
    • Over range display
    • Under range display
    • A & C Weighting
    • FAST (125ms) & SLOW (1s) response
    • Data logger
    • IEC61672-1CLASS2 Standard
    • ±1.4dB Accuracy
    • 32700 Memories
    • 1/2 inch electret condenser microphone
    • 2 times/sec Display Update
    • Analogue Output
    • USB Connectivity

    Level Ranges:

    • Low: 30dB~80dB
    • Med: 50dB~100dB
    • Hi: 80dB~130dB
    • Auto: 30dB~130dB


    Analogue Output:

    • AC/DC outputs from earphone outlet AC=1Vrms ,DC=10mV/dB

    Specifications

    Sound range : 30dB, 130dB
    Weighting : A WeightedC Weighted
    Frequency Range : 31.5Hz, 8kHz
    Response : Fast: 125ms, Slow: 1s
    Dynamic Range : 50dB
    Resolution : 0.1dB
    Digits Displayed : 4digit
    Display Type : LCD
    Length : 278mm
    Width : 76mm
    Depth : 50mm
    Weight : 350g
    Battery used for : Main Product
    Size / Shape : 9V
    Type : Alkaline
    Battery quantity : 1pc
    Batteries included : true
    Batteries can be replaced by user : true
    Runtime : 25hr, 30hr
    Packaged Volume : 12.41l
    Packaged Weight : 2.05kg
    Packaged Length : 29cm
    Packaged Width : 38.9cm
    Packaged Height : 11cm
    Automatic Shut-off : 15min
