Description

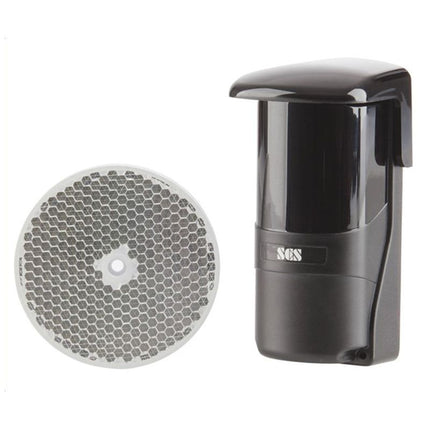

Looking for reliable outdoor security? Look no further than the TECHVIEW Weatherproof Commercial Grade Infrared Beam LA5179. This tough device is built for durability, with a metal housing that's fully dust and waterproof, so it can withstand even the harshest weather. With a wide angle of coverage and quick response time, you can be sure that no movement will go unnoticed. Plus, its adjustable sensitivity range means you can customize it to your specific needs. Best of all, it has a low power consumption and long operating life, so you can trust it to provide reliable performance day after day.
To power the unit, you can either wire it directly to 240 volts or use a 12-volt DC plugpack. Note that if you choose to wire it into 240-volt mains, it is recommended to use a licensed electrician. Please be aware that the unit does not come with a plugpack.
- Adjustable vertical beam angle
- Narrow beam angle
- NC tamper switch output
- Terminal block and cable gland included
Features:
- Sensing range: 0.25 to 15m
- Enclosure Rating: IP66
- Relay output: NO / NC contact
- Output contact rating: 30VDC 1A
- Sensor module dimensions: 122(H) x 62(D) x 61(W)mm

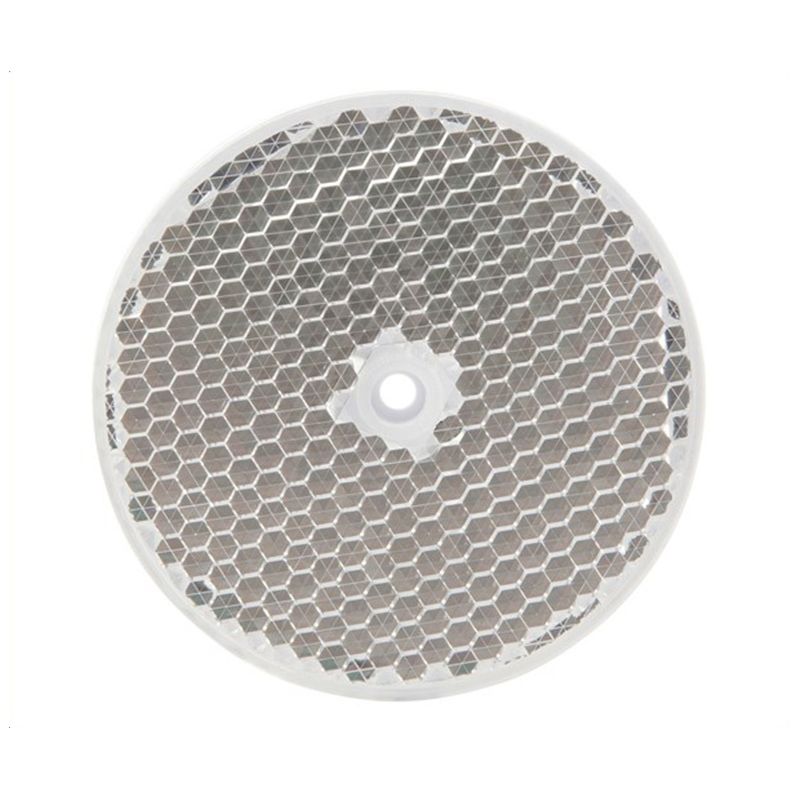

- Reflector dimensions: 82(Dia) x 8(H)mm
Specifications
| Width : 61mm |
| Height : 122mm |
| Depth : 62mm |
| Packaged Volume : 1.26l |
| Packaged Weight : 0.31kg |
| Packaged Length : 18.4cm |
| Packaged Width : 9.1cm |
| Packaged Height : 7.5cm |
| Type of Siren : multi-tone |
| Mounting Method : bracket |
| Weatherproof : Weatherproof |
| Effective Range : 15m |
| Dimensions details : Reflector Dimentions |
| Height : 8mm |
| Diameter : 82mm |
