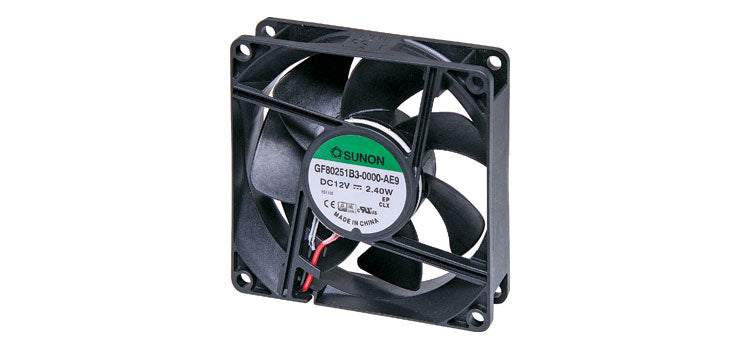

80mm 12VDC IP68 Ball Bearing Cooling Fan

Description

Maximize the lifespan of your electronics with our 80mm 12VDC IP68 Ball Bearing Cooling Fan. Enjoy 80% longer use with durable ball bearings. Keep your devices running smoothly and effectively with IP68 protection against dust and water. Trust the expert choice for optimum performance.

Specifications

  • Mechanical Characteristics
  • Motor Design: Single phase, 4 poles brushless DC motor
  • Bearing System: Precision ball bearing system
  • Frame Material: Thermoplastic PBT of UL94V-0
  • Blade Material: Thermoplastic PBT of UL94V-0
  • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
  • Mounting Holes: 8x 4.3mm holes
  • Weight: 105g
  • Shipping Weight: 0.12800Kg

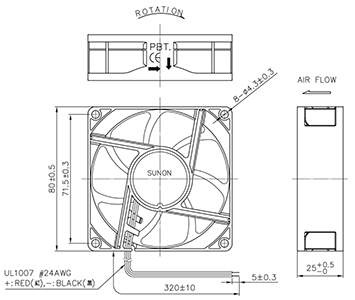

  • Dimensions: 80 x 80 x 25mm
  • Electrical Characteristics
  • Rated Voltage: 12V DC
  • Rated Current: 200mA (230mA max)
  • Rated Power Consumption: 2.40W (2.76W max)
  • Operating Voltage Range: 6~13.8V DC
  • Starting Voltage: 6V DC (25°C Power On/Off)
  • Operating Temperature: -10°C ~ +70°C
  • Storage Temperature: -40°C ~ +70°C
  • Performance Characteristics
  • Rated Speed: 4200 RPM ±10% at rated voltage
  • Air Flow: 53 CFM
  • Static Pressure: 0.30 Inch-H2O
  • Noise Level: 44.5dB(A)
  • Insulation Class: UL Class A
  • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
  • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
  • Life Expectancy: 70,000 hours at 40°C, 65% RH, 90% CL
  • Protection: Automatic restart


Product form

Maximize the lifespan of your electronics with our 80mm 12VDC IP68 Ball Bearing Cooling Fan. Enjoy 80% longer use with... Read more

SKU: AL-F0950
Barcode: 9321758178256

1 in stock All Orders now shipped 6th January  Delivery times may vary based on your location and AU Post's service standards.

$95.00

    • Free shipping on all orders over $99*
    • 30 Day free no hassle returns - Even if you change your mind!
    • Secure Checkout Process! Shop with confidence!

    Description

    Maximize the lifespan of your electronics with our 80mm 12VDC IP68 Ball Bearing Cooling Fan. Enjoy 80% longer use with durable ball bearings. Keep your devices running smoothly and effectively with IP68 protection against dust and water. Trust the expert choice for optimum performance.

    Specifications

    • Mechanical Characteristics
    • Motor Design: Single phase, 4 poles brushless DC motor
    • Bearing System: Precision ball bearing system
    • Frame Material: Thermoplastic PBT of UL94V-0
    • Blade Material: Thermoplastic PBT of UL94V-0
    • Direction of Rotation: Counter clockwise viewed from the front of the fan blade
    • Mounting Holes: 8x 4.3mm holes
    • Weight: 105g
    • Shipping Weight: 0.12800Kg
    • Dimensions: 80 x 80 x 25mm
    • Electrical Characteristics
    • Rated Voltage: 12V DC
    • Rated Current: 200mA (230mA max)
    • Rated Power Consumption: 2.40W (2.76W max)
    • Operating Voltage Range: 6~13.8V DC
    • Starting Voltage: 6V DC (25°C Power On/Off)
    • Operating Temperature: -10°C ~ +70°C
    • Storage Temperature: -40°C ~ +70°C
    • Performance Characteristics
    • Rated Speed: 4200 RPM ±10% at rated voltage
    • Air Flow: 53 CFM
    • Static Pressure: 0.30 Inch-H2O
    • Noise Level: 44.5dB(A)
    • Insulation Class: UL Class A
    • Insulation Resistance: 10MΩ at 500V DC between internal stator and lead wire (+)
    • Dielectric Strength: 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
    • Life Expectancy: 70,000 hours at 40°C, 65% RH, 90% CL
    • Protection: Automatic restart
