Description

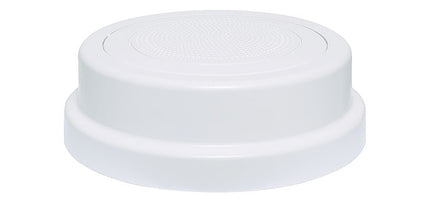

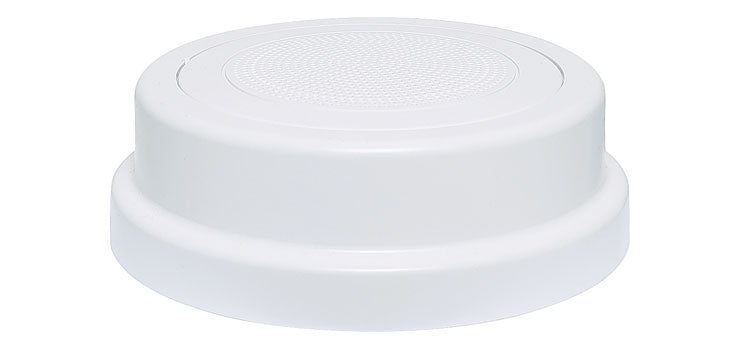

Enhance fire safety with the 5W 100V 100mm (4”) Fire Speaker White AS ISO7240.24. This powerful speaker is designed for high-quality audio, delivering clear sound and reliable performance. Perfect for fire alarm systems in commercial buildings, providing crucial updates and instructions in the event of an emergency.
Features
- Designed to meet AS ISO7240.24 standard for fire & evacuation warning systems*
- Excellent speech intelligibility
- High quality speaker driver developed for BGM, paging and emergency warning applications
- Patented 2 way latching system reduces installation time.
- Fitted with 4 way wire protect terminal block for loop in, loop out wiring as required by Australian Standards.
- Fitted with supervisory capacitor for line monitoring.
- High impact enclosure & grille.
- Australian designed & assembled.
- 5 year warranty.
Specifications
Electrical
- Rated Noise Power: 5 Watts (100V line)
- Power Taps & Impedance (100V line): 0.33W (30kΩ), 0.66W (15kΩ), 1.25W (8kΩ), 2.5W (4kΩ), 5W (2kΩ)
- Sensitivity: 88dB (1W @ 1m), 76dB (1W @ 4m)
- Maximum Sound Pressure Level: 95dB (5W @ 1m), 83dB (5W @ 4m)
- Frequency Response: 100Hz – 15kHz
- Coverage Angle (-6dB): 1000Hz: 140°, 2000Hz: 105°, 4000Hz 80°
- Environmental Type: A (for indoor applications as per standard)
- Line Monitoring: Yes, 22µF bipolar capacitor
- Applicable Cable: 2.5mm2 (14AWG) max conductor area
- Connection: 4 way screw terminal
Mechanical
- Speaker Component: 100mm (4”) paper cone speaker
- Material:
- White flame retardant ABS grille and housing (Taitalac 8540T)
- Clear Flame retardant ABS spring clips (Makrolon 6557)
- Mounting Method: Surface Attachment
- IP Rating: IP 21C
- Dimensions: 210Ø x 67mm
- Weight: 0.81kg
- Shipping Weight: 0.91500Kg
Environmental
- Operating temperature: -25°C to +55°C
- Relative humidity: < 95%
Additional Installation Accessories
- C 0699 Conduit mounting plate
The Labour Saving One-Shot® Mounting System

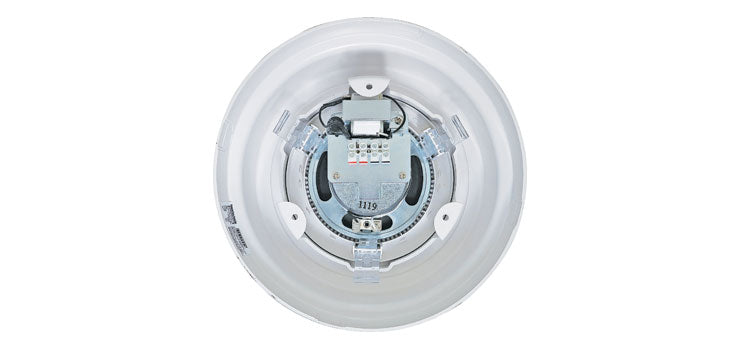

Redback® “One-Shot®” speaker units install in seconds providing substantial labour cost savings for the professional installer compared to traditional mounting methods. They simply snap fit to the outer mounting ring by means of the integral pressure clips. The snap clip material is formulated to retain long service life strength and spring action, ensuring a firm vibration free fit. Speaker cable entry can be either from the rear, or via surface mounted conduit (four 19mm conduit knockouts are provided). The neutral white RAL colour provides an architecturally unobtrusive finish to virtually any installation. The transformer is fitted with a 4 way wire protect screw terminal block. This is suitable for loop in, loop out cabling.
Activ-Fire listed product.
This speaker has been tested and certified by the CSIRO under the active fire protection product certification scheme. This is a register of approved fire protection equipment used in fire and evacuation systems.
Backed by an industry leading 5 Year Speaker Performance Warranty.
This speaker is covered by our 5 Year speaker performance warranty. Redback PA drivers are engineered and manufactured to stringent specifications ensuring maximum reliability under all operating conditions. Each driver has a power rating well above the max tapping of the transformer, ensuring reliable operation and excellent longevity.
