Description

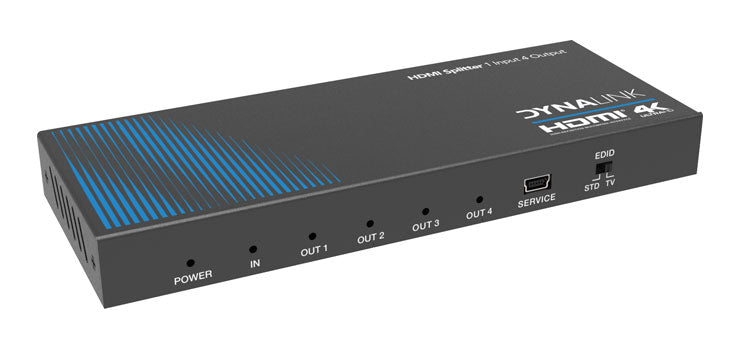

The 4K 1x4 HDMI Splitter allows you to connect one HDMI source to four displays simultaneously, supporting stunning 4K resolution at 60Hz and a high bandwidth of 18Gbps. Ideal for home theaters, presentations, and gaming setups, this splitter ensures crystal-clear image quality and vibrant colors across all connected displays. Its compact and durable design makes installation easy, while plug-and-play functionality eliminates the need for additional software or drivers. Compatible with various devices such as Blu-ray players, gaming consoles, and laptops, the 4K HDMI splitter is the perfect solution for enhancing your audio-visual experience.
Features
- Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays
- Video Resolutions up to UItra HD 4Kx2K (3840x2160p)@60Hz YUV 4:4:4.
- Three kinds of EDID handling abilities
- HDCP2.2/1.4 Compliant
- 36 bit Deep Color
- LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master Audio
- Bandwidth 18Gbps
- Supports HDR
Specifications
- Video Bandwidth: 600MHz/18Gbps
- Output Resolution: 480i ~1080p50/60, 4Kx2K@24/30, 4k2k@60Hz
- ESD Protection: Human Body model: ±8kV (Air-gap discharge) , ±4kV (Contact discharge)
- Input Ports: 1 x HDMI Type A [19-pin female]
- Output Ports: 4 x HDMI Type A [19-pin female]
- Chassis Material: Metal
- Colour: Black
- Dimensions: 63mm (W) × 163mm (D) × 16mm (H)
- Weight: 260g
- Power Supply: 5V/1A DC (US/EU standards,CE/FCC/UL certified)
- Power Consumption: 2W
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 20~90% RH (non-condensing)
