Description

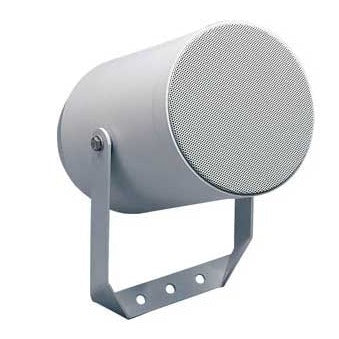

The Redback C 1520 is a high-performance sound projector designed for commercial use. It is suitable for both indoor and outdoor environments, providing excellent music and speech reproduction. This 20W 100V IP65 EWIS Sound Projector PA Speaker offers high-quality sound projection for any PA system. With IP65 protection, it is suitable for outdoor use and can withstand various weather conditions. Its 20W power output ensures clear and powerful sound, making it an excellent addition to any sound system
Key Features
-
Power Output: 20W with selectable power taps of 20W, 10W, 5W, and 2.5W.
-
Frequency Response: 110Hz to 18kHz.
-
Sound Pressure Level (SPL):
- 98dB at 1W @ 1m
- 104dB at full power @ 1m
-
Materials and Construction:
-
Housing: Made of UV stabilised high-impact ABS plastic.
-
Mounting Bracket: Durable powder-coated aluminum.
-
Grille: Stainless steel.
-
Weatherproof: Rated IP65, ensuring reliability in harsh environments.
-
Cable Connection: Fitted with a 300mm seven-core cable for easy power tap selection.
-
Warranty: 5-year warranty for peace of mind.
Technical Specifications
Electrical
-
Power Taps: 2.5W, 5W, 10W, 20W.
-
Impedance: 500Ω, 1kΩ, 2kΩ, 4kΩ.
-
Dispersion: 180°/120°.
-
Directivity Q Factor: 2.6φ / 5.6φ at 1kHz.
-
Connection: 7-core cable.
-
IP Rating: IP65.
-
Max/Min Ambient Temperature: 70°C / -25°C.
Mechanical
-
Driver Construction: Coaxial 2-way driver with coated cone.
-
Dimensions: 138mm diameter x 204mm depth.
-
Weight: 1.6kg.
-
Colour: Neutral grey RAL (also available in black - C 1549).
Installation
-
Installation Guidelines:
- Supplied with stainless steel bracket, grille, and fixings.
- Architecturally unobtrusive finish suitable for various installations.
- Suitable for environments like sports stadiums, train stations, shopping centres, and aquatic arenas.
Applications
-
Use Cases: Ideal for background music and paging applications in commercial spaces.
-
High Efficiency: The high-efficiency driver and line transformer ensure reliable operation and longevity.
-
Factory Testing: Redback drivers are subjected to strenuous factory testing to reduce the risk of unit failure over time.
