Description

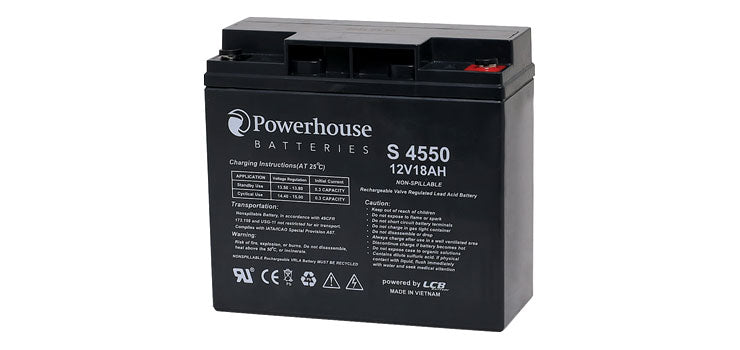

Designed for versatility, this 12V 18Ah sealed lead acid (SLA) battery is a compact powerhouse for powering a range of 12V equipment. Its applications span from essential backup systems to alarm and communications setups, as well as UPS units. Equipped with M6 bolt and nut terminals, these batteries facilitate easy user replacement in compatible equipment. With fully sealed cells, they guarantee zero electrolyte leakage, ensuring reliable performance and safety. Classified as UN 2800 Non-Spillable - Hazard Class 8, it meets stringent safety standards for worry-free handling and transportation.
- General
- Dimensions: 181L x 76W x 167H mm (including tabs)
- Weight: 5.4kg
- Shipping Weight: 5.78500Kg
- Charging
- Cell Per Unit: 6
- Nominal Voltage: 12V
- Nominal Capacity: 18Ah @ 20hour rate.FV (1.75/Cell)
- Internal Resistance (1KHz): ≤16mΩ
- Max. Discharge Current: 180A (5s)
- Battery Life: 3-5 years standby
- Terminal Type: M5/F13
- Container Material: ABS
- Ambient Temperature
- Charge: 0°C to 40°C
- Discharge: -15°C to 50°C
- Storage: -15°C to 40°C
- Max Charge Current
- Cycle Use:
- Max Charge Current: 5.4A
- Charge Voltage: 14.4V to 15.0V
- Stand By:
- Charge Voltage: 13.5V to 13.8V
